MotionLinx-AI
Experience the future of motion control with MotionLinX AI from Pulseroller. This innovative solution enhances industrial automation, boosting efficiency, precision, and intelligence. Through advanced intelligence and networked drive control, MotionLinX AI revolutionizes operations. Upgrade now for efficient, adaptive, and intelligent processes, eliminating manual adjustments and embracing precise motion control. Pulseroller’s expertise paves the way to an industry-leading future.
$621.92
Description

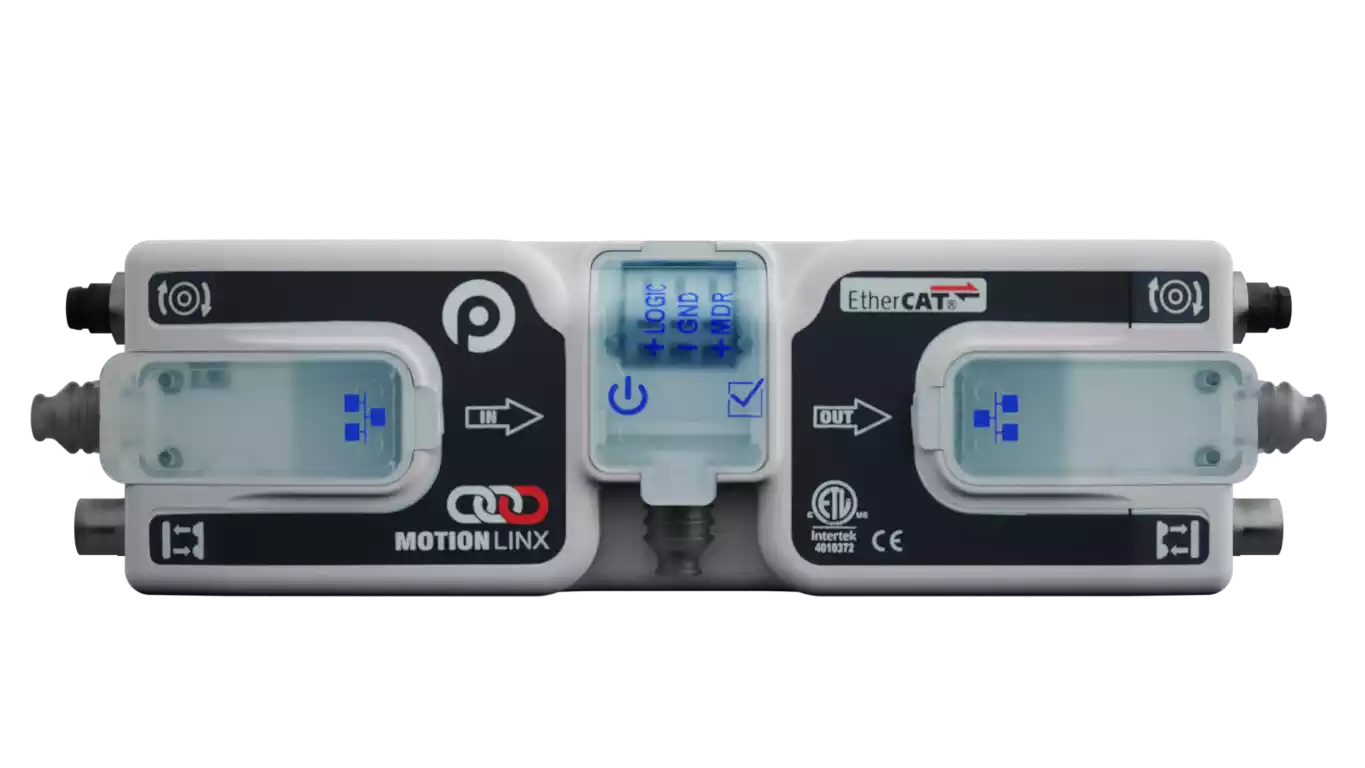

The MotionLinx-AI is a 2-zone programmable remote I/O unit for EtherCAT Controllers with dual motor control, auto detection of PNP or NPN sensors, and a 3-port Ethernet switch with standard sockets for easy daisy chaining.
It features a similar footprint and power levels to the ConveyLinx-Ai2 models, and offers overload protection, proportional-integral regulated motor speed control, and works well with Senergy-AI Technology motor rollers and drives.
– CE certified, RoHS compliant, IP54 |
– ETL Certified (UL 6101-2 & UL 61010-2-201) |
– UL recognized (UL 61800-5-1) |
– 2 In / 2 programmable I/Out dual motor control remote I/O unit for EtherCAT Controller |
– Auto-detection of PNP or NPN sensors |
– 3-port Ethernet switch with standard RJ-45 sockets for easy daisy chaining of network cables from controller to controller |
– 4-Pin M8 style connection for motors and sensors |
– Thermal and overload motor protection plus proportional-integral regulated motor speed control |
– 6 tri-colored context-sensitive LED indicators |
– Module configuration and motor performance parameters accessed via EtherCAT SDOs |
– I/O and motor data exchange via EtherCAT PDOs |
– Sensor ports can be configured to accept push-pull type sensors |
– Works with Senergy-Ai Technology motor rollers and drives |
| Input Voltage | 18 to 28VDC |
| Rated Motor Output Current | 2.5A x 2 (ECO), 3.5A x 2 (Boost and Boost-8) |
| Available Starting Current | 3.0A x 2 (ECO), 5.0A x 2 (Boost), 8.0A x 2 (Boost-8) |
Additional information
| Version | Standard, High Torque Freezer |
|---|
