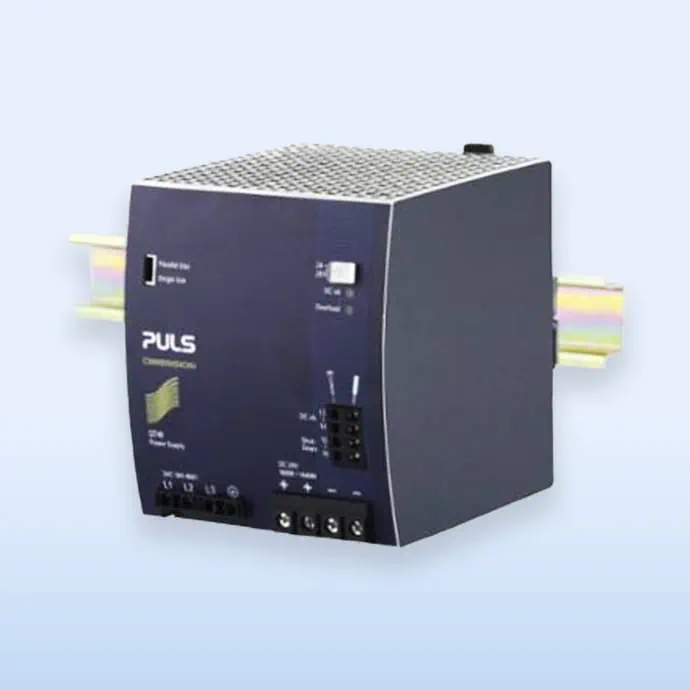

QT40.241 Power Supply

Features:

• Alternative or replacement for AC transformer
• Three phase input – DC output
• DIN-Rail mountable
• Width only 96 mm
• Efficiency 95.5 %
• 125 % Peak power capability
• No input inrush current
• Active input transient blocker
• Full power between -25 °C and +60 °C
• Easy failure diagnostics
• No electrolytic capacitors on input side
• Cost effective and robust

Input Data

• AC Input voltage – AC 400 (+- 15%)
• Harmonic correction – active
• Power factor – 0.93
• Input inrush current limitation – active
• Input inrush current – 2 A
• External input fuse recommendation – B-6 A/C-3 A

Output Data

• Nominal Voltage – 24 vdc
• Adjustment range – 24 V
• Ouput current range – 40 A
• Output current – 40 A at 24 V
• Output power – 960 W
• Power reserves – 25% power reserves
